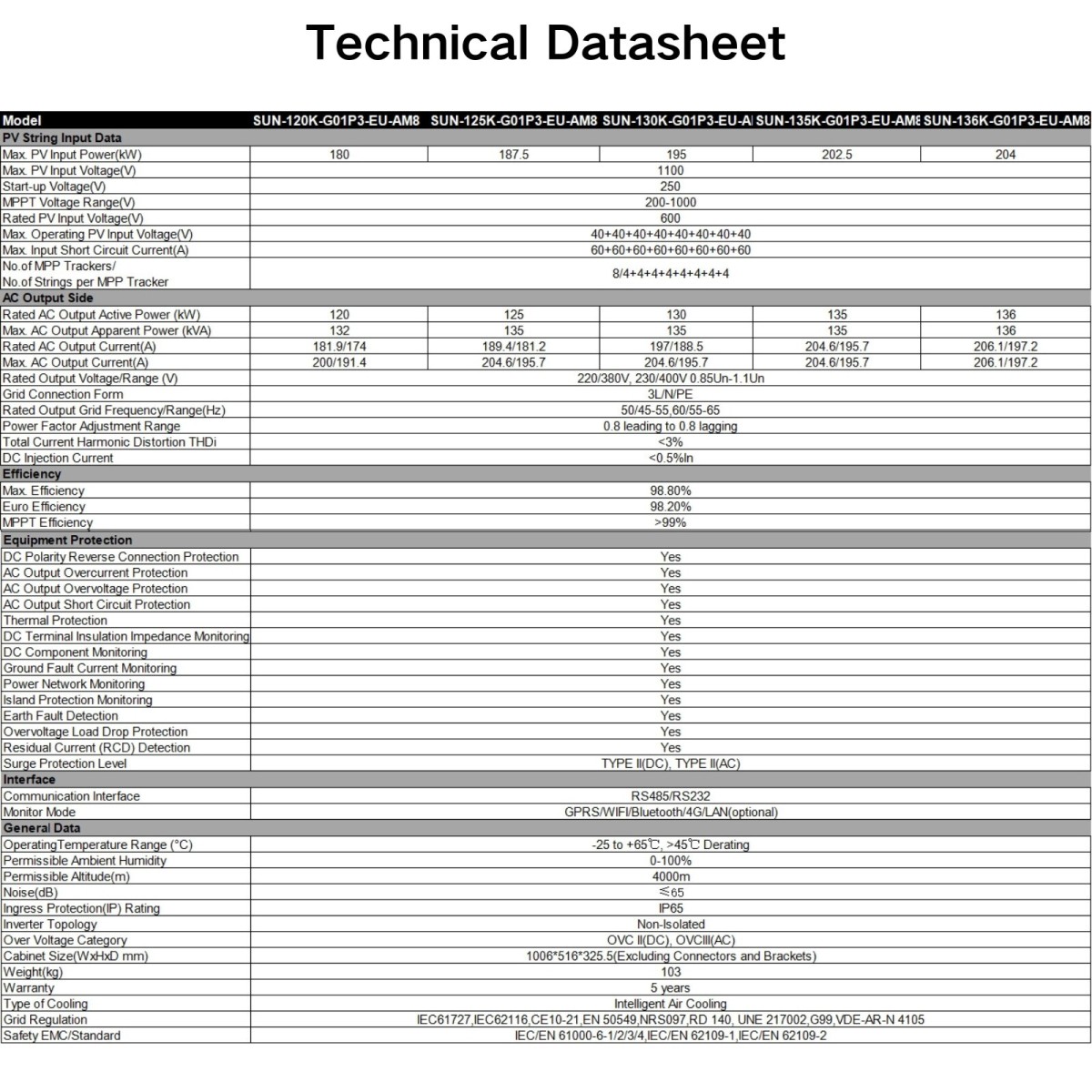

Technical Specifications
Model Variants: SUN-120K-G01P3-EU-AM8, SUN-125K-G01P3-EU-AM8, SUN-130K-G01P3-EU-AM8, SUN-135K-G01P3-EU-AM8, SUN-136K-G01P3-EU-AM8.
PV Input:
Maximum PV input power up to 204 kW.
Max. PV Input Voltage of 1100 V and start-up voltage of 250 V.
AC Output:
Rated Output Active Power spans from 120 kW to 136 kW depending on the model.
Max. AC Output Apparent Power up to 136 kVA.
Total Current Harmonic Distortion (THDi) is kept under 3%.

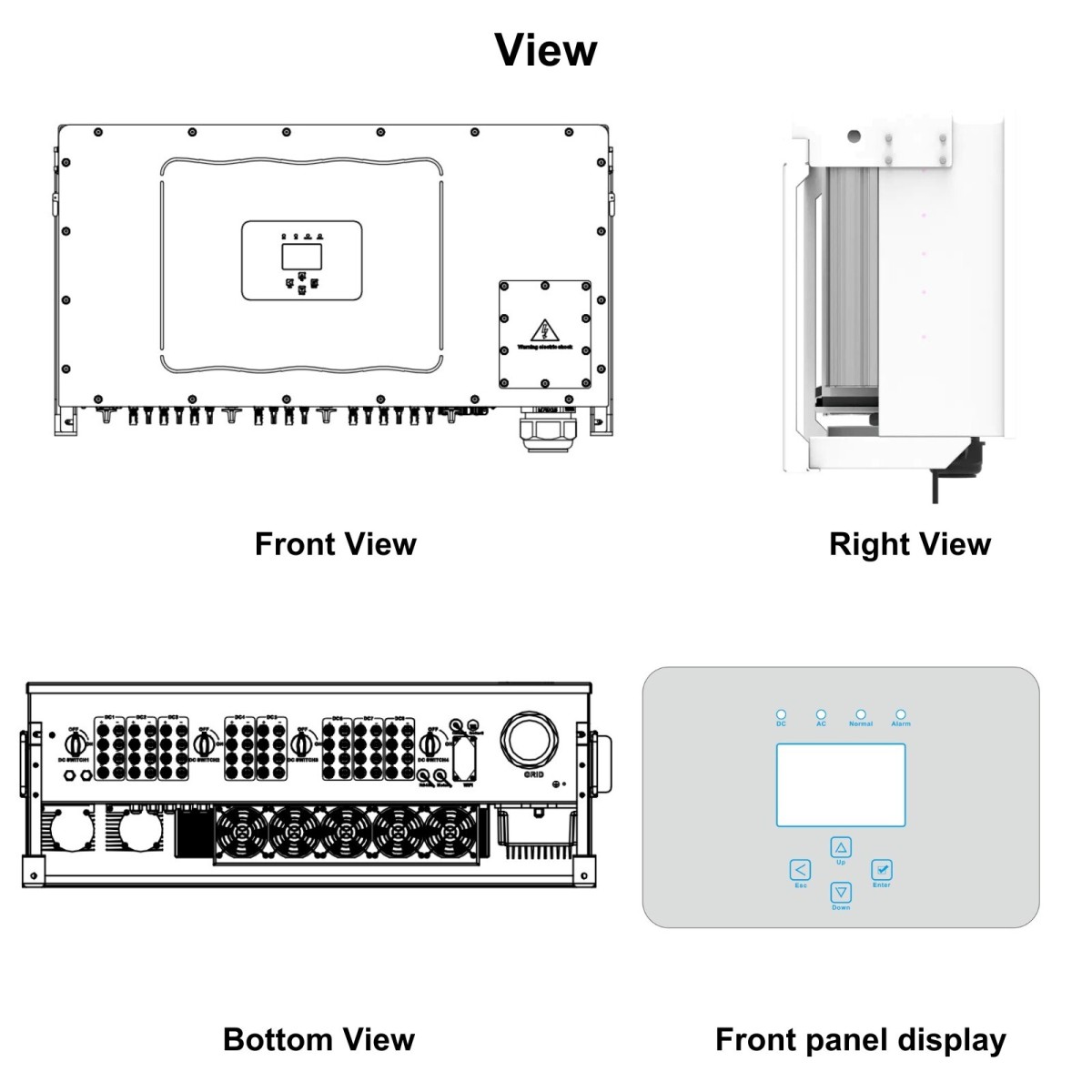

Physical Dimensions:
The inverter dimensions are 1006 mm (W) x 516 mm (H) x 325.5 mm (D) (excluding connectors and brackets), with a weight of 103 kg.
