2 MPP trackers, Max.effciency up to 98.5%
Zero export application,VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PlD function (Optional)

Technical Specifications

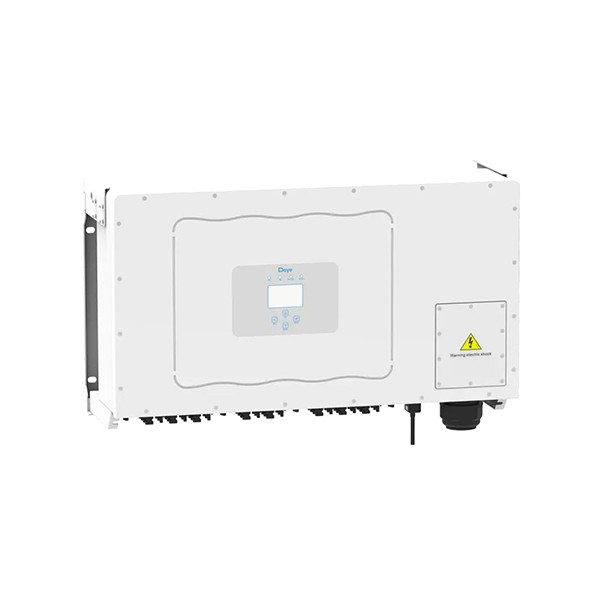

Model Variants: SUN-120K-G01P3-EU-AM8, SUN-125K-G01P3-EU-AM8, SUN-130K-G01P3-EU-AM8, SUN-135K-G01P3-EU-AM8, SUN-136K-G01P3-EU-AM8.
PV Input:
Maximum PV input power up to 204 kW.
Max. PV Input Voltage of 1100 V and start-up voltage of 250 V.
AC Output:
Rated Output Active Power spans from 120 kW to 136 kW depending on the model.
Max. AC Output Apparent Power up to 136 kVA.
Total Current Harmonic Distortion (THDi) is kept under 3%.
Physical Dimensions:
The inverter dimensions are 1006 mm (W) x 516 mm (H) x 325.5 mm (D) (excluding connectors and brackets), with a weight of 103 kg.

Specifications
Max. PV Input Voltage: 1000 V
PV Start-up Voltage: 250 V
MPPT Voltage Range: 200-850 V
Maximum Efficiency: Up to 98.7%
Operating Temperature Range: -25°C to +60°C
Noise Level: ≤55 dB
Communication Interfaces: GPRS/WIFI/Bluetooth/4G/LAN (optional), RS485/RS232
Maximum Inverter Efficiency: 98.7%
Ingress Protection Rating: IP65

Technical Specifications

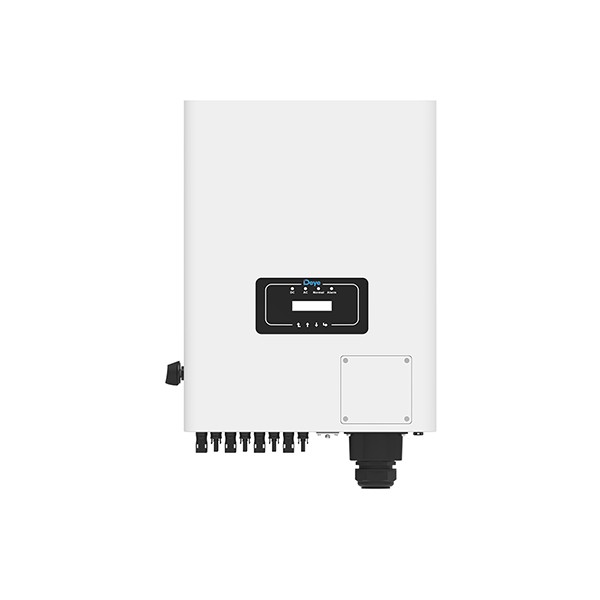

Models: SUN-40K-G04, SUN-45K-G04, SUN-50K-G04
Max. PV Input Power: Up to 65kW
Max. PV Input Voltage: 1100V
Rated AC Output Power: 40kW, 45kW, 50kW
Max. AC Output Apparent Power: Up to 55kVA
MPPT Efficiency: >99%
Total Current Harmonic Distortion (THDi): <3%
Operating Temperature Range: -25 to +60°C, with derating above 45°C
Noise Level: <50 dB
Dimensions: 434 x 570 x 243 mm
Weight: 37.1 kg

2 MPP trackers, Max. efhciency up to 98.6%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PlD function (Optional)

2 MPP trackers, Max. efficiency up to 97.5%
Zero export application, VSG application
String intelligent monitoring (optional)
Wide output voltage range
Anti-PlD function (Optional)
Low start-up voltage of 80V
