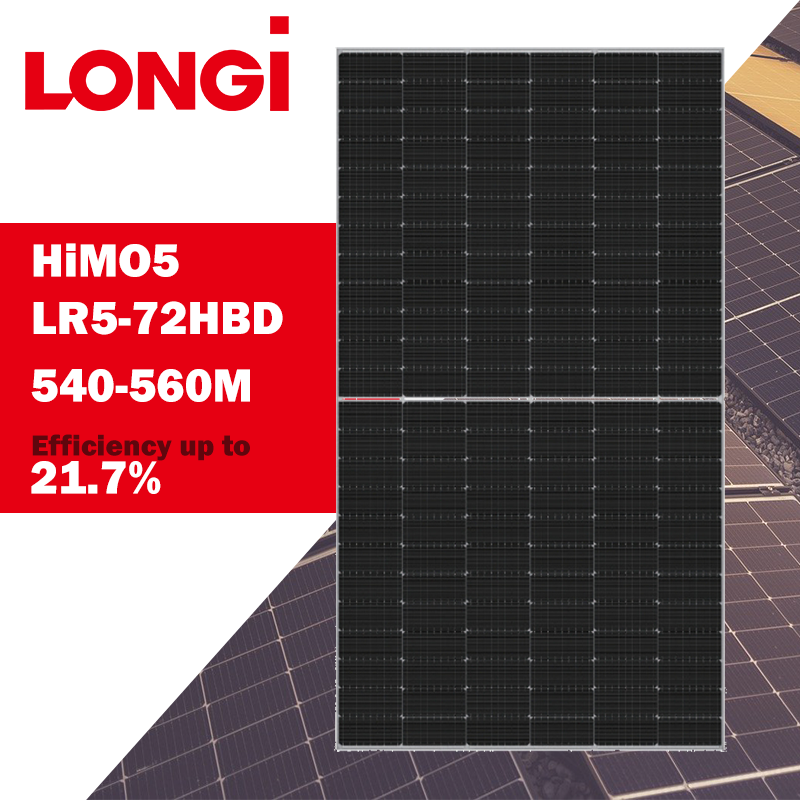

Longi Solar Panle LR5-72HBD 540-560M
Longi Solar Panle LR5-72HBD 540-560M
Model NO:LR5-72HBD 540~560M
Weight:31.8 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2278*1134*30mm
Trademark:Longi solar
Origin:China
MECHANICAL DATA
Cell Orientation144(6*24)
Junction BoxIP68,three diodes
Output Cable4mm²,+400,-200mm/±1400mm
length can be customized
GlassDual glass, 2.0+2.0mm heat strengthened glass
FrameAnodized aluminum alloy frame
Weight31.8kg
Dimension2278*1134*30mm
ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)540w545w550w555w560w
Power Tolerance0~±3%
Opt. Operating Voltage (Vmp)49.549.6549.849.9550.1
Opt. Operating Current (Imp)13.8513.9213.9914.0514.1
Open Circuit Voltage (Voc)41.6541.841.9542.142.25
Short Circuit Current (Isc)12.9713.0413.1213.1913.26
Module Efficiency20.90%21.10%21.30%21.50%21.70%

Why JA TECH CO LTD?

With a global customer base, JA TECH CO LTD has established itself as a trusted name in the industry. From Asia to Europe, Africa to the Americas, their products have reached every corner of the world, making a positive impact on countless lives.

The high praise and positive feedback received from customers worldwide speak volumes about the exceptional quality and performance of JA TECH CO LTD's products.

When it comes to solar solutions, JA TECH CO LTD stands out from the crowd. Their commitment to excellence is reflected in every aspect of their offerings. From solar panels to inverters, they ensure that their products are of the highest quality, delivering outstanding performance and reliability.

Embracing renewable energy has never been more crucial, and JA TECH CO LTD is at the forefront of this movement. By choosing their products, you not only contribute to a greener future but also benefit from cutting-edge technology and exceptional customer service.


Why Longi LR5-72HBD?

Introducing the LONGI HIMO5 LR5-72HBD, the latest breakthrough in solar panel technology!

Designed for large-scale ground-mounted solar power plants, this cutting-edge solar panel is equipped with a range of advanced features to maximize efficiency and power output.

Featuring an innovative one-piece segmented welding strip and 9BB half-cut cells, the LONGI HIMO5 LR5-72HBD offers unparalleled performance. With these advancements, the module's efficiency and power have been significantly enhanced, reaching an impressive maximum power output of 560W and an efficiency rating of up to 21.7%!

But that's not all! The LONGI HIMO5 LR5-72HBD also boasts a double-sided design, allowing it to capture sunlight from both sides and generate even higher energy yields. This means more electricity for your solar power plant and a greater return on investment!
